Top Cat 54V Schematic

Buy Parts Repair Services Print Schematics

Schematics Image

Top Cat 54V Schematic

Top Cat 54V Schematic

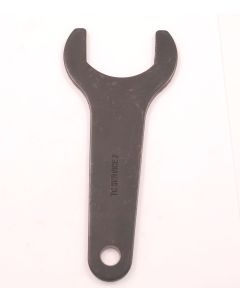

2" WRENCH
$9.40
700-200 7" Guard Type 27 Wheels
$54.40
700-201 9 inch Guard Type 27
$60.65
GOV. ASSY. ( 4500 RPM )
$116.13
550-1-BTB Bearing Support
$80.30
550-3 Rear Plate for Top Cat Tools
$63.05
550-5 Rotor
$91.60
550-7 Front End Plate
$35.30
555-8 Spindle
$99.45
KEY
$2.65
550-12-B 2 Inch Drive Flange
$24.10
510077 REPAIR KIT TOP CAT 54V GRINDER
$39.50
1000-5 Wavy Washer
$1.59
849269 Top Cat Type 27 Adapter Kit
$38.50
