CP 714 Air Hammer Schematic

CP 714 Air Hammer Schematic

Buy Parts Repair Services Print Schematics

Schematics Image

CP 714 Air Hammer Schematic

CP 714 Air Hammer Schematic

C079489 O-Ring for CP714 Air Hammer
$1.65
A050268 O-Ring for CP714 Air Hammer
$1.83
A117360 Spring-Throttle Valve For CP 714 Air Hammer
$5.35

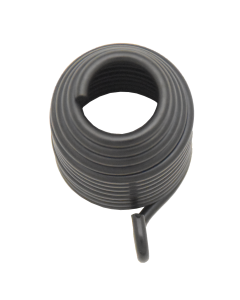

22 - Beehive Spring
$3.50
A046094 CP714 Retainer (Zip Change)
$23.05
CA091545 Cap-Throttle For CP 714 Air Hammer
$6.95
A050261 Throttle Valve for CP714 Air Hammer
$16.05
A050262 Stem-Throttle Valve for CP714 Air Hammer
$64.65
24 - Valve
$67.69
A050265 Handle-Offset
$330.66
P070552 PIN
$7.99
P071926 Piston for CP714 Air hammer
$48.78
CA099895 Gasket Valve block
$2.95
S086833 Retaining Clip for CP714 Air Hammer
$7.55
C089890 O RING FOR CP714 AIR HAMMER
$2.08
69 - A895 BEE HIVE .401 SPRING
$5.05
KF141312 Block-Valve
$55.99
P142862 Exhaust Deflector for CP714 Air Hammer
$39.99
CP714 Throttle Valve Seal Kit
$12.95
